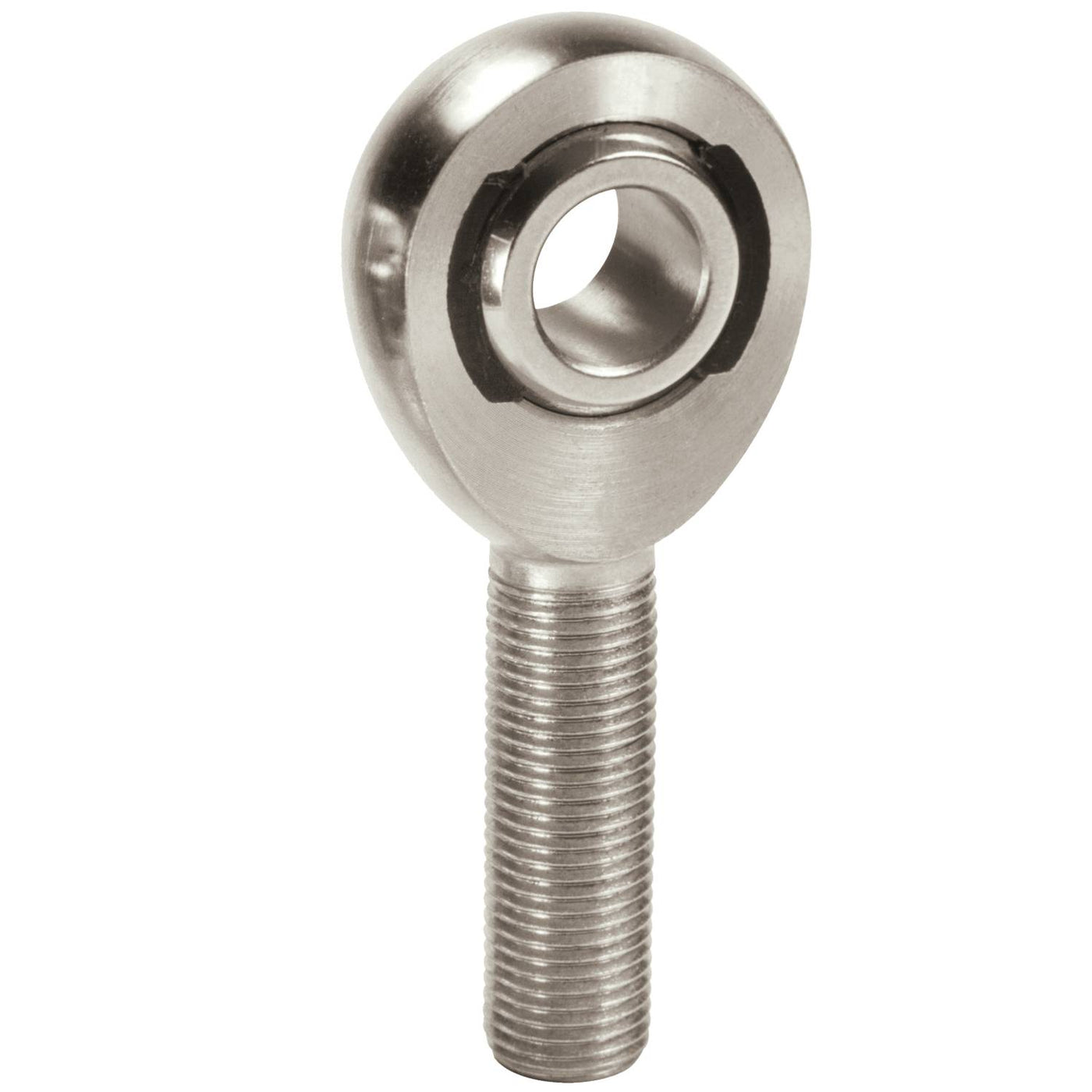

QA1 XML8-12 Male Rod End 3/4”-16 LH, Chromoly Steel

Product Description
$41.43
Maximum quantity available reached.

QA1 designed this XML8-12 Rod End to be the ultimate in performance! Commonly used on 4-links and ladder bars, this rod end provides strength as well as durability. The Nylon/PTFE injection molded race is completely self-sealing in addition to self-lubricating to keep dirt and debris out.

The ball is made of 52100 bearing steel that has been heat treated, hard chrome plated as well as precision ground. The body is made from heat treated chromoly steel that has a protective coating for corrosion resistance.

EXCLUSIVE FEATURES: Metal to metal support for heavy shock loads in addition to increased cross-sectional thickness for greater tensile strength.

QA1 XML8-12 Rod End Features:

  • Product Line: XM Series
  • Style: Endura
  • Thread Size: 3/4 in.-16
  • Thread Style: Male
  • Thread Direction: Left Hand
  • Rod Head Width: 0.750 in.
  • Rod End Centerline Length: 2.875 in.
  • Rod Head Diameter: 1.750 in.
  • Thread Length: 1.750 in.
  • Bore Size: 0.5000 in.
  • Rod End Misalign Angle: 16 Degrees
  • Rod End Static Load Capacity: 32,457 lbs.
  • Jam Nut Included: No
  • Lined: Yes
  • Lining Material: PTFE
  • Material: Chromoly Steel
  • Finish: Zinc Plated
  • Quantity: Sold Individually

QA1 specializes in high-performance suspension components, including shock absorbers, rod ends, spherical bearings, struts, springs, ball joints in addition to other related items. With products to fit a wide variety of applications, they have solutions for the circle track, drag racing, street performance, as well as the street rodding markets.

Sku: QA1XML8-12
Vendor: QA1
