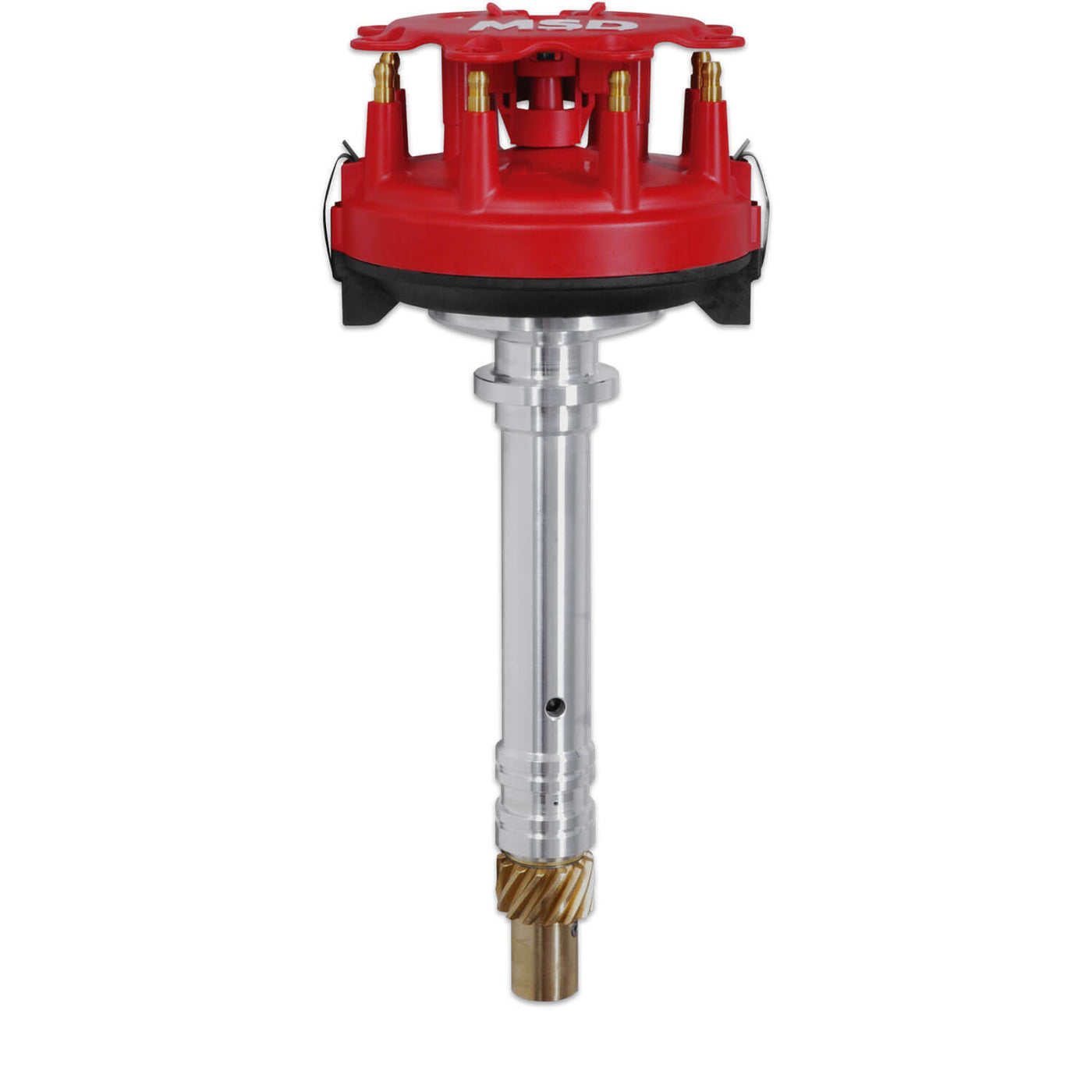

MSD 84697 Crank Trigger Distributor for Chevy V8

Product Description
$341.95
Maximum quantity available reached.

MSD designed this 84697 Crank Trigger Distributor for Chevy small block and big block engines using a Crank Trigger Ignition. The Low-Profile cap allows this distributor to fit tight intake systems as well as transfer the high voltage of the MSD racing ignition to the spark plugs.

A large diameter HEI style cap with wide spaced terminals as well as an injection molded Rynite rotor with thick vanes stir up the air inside the cap. The high dielectric Rynite base also prevents arcing to the billet housing.

The housing is CNC-machined from billet aluminum to exact tolerances. For stability well over 10,000 RPM, a sealed ball bearing as well as a long-sintered bushing supports the .500" steel shaft.

Must be used with either an MSD 6, 7 or 8-series ignition.

MSD 84697 Crank Trigger Distributor Features:

  • Fits Chevy V8 engines
  • Low Profile
  • Distributor Cap Color: Red
  • Housing Material: Billet Aluminum
  • Trigger Style: Crank Trigger
  • Advance Type: Locked
  • Slip Collar: No
  • Ignition Box Required: Yes
  • Cap Style: Male/HEI
  • Distributor Gear Rotation: Standard
  • Distributor Gear Material: Bronze
  • Computer-Controlled Compatible: No
  • Mechanical Tach Drive: No
  • Marine Use: No

From street cruisers to Top Fuel dragsters, MSD's ignition systems have been the industry leader for over 40 years. MSD continues to push the envelope with cutting-edge ignition technology as well as intake manifolds and EFI systems.

Sku: MSD84697
Vendor: MSD IGNITION
