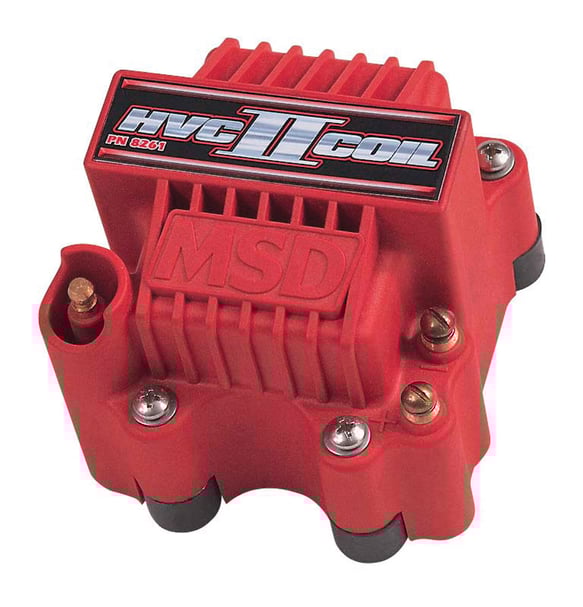

MSD 8261 HVC-2 Race Ignition Coil

Product Description
$325.95
Maximum quantity available reached.

MSD designed this 8261 HVC-2 Race Ignition Coil for use in racing applications with an MSD 7 or 8 series ignition! It features MSD’s new U-Core winding design that produces more voltage and current than previous designs. It also has a tough, rigid Rynite housing with a tall isolated tower as well as brass primary terminals.

This coil has a maximum voltage of 45,000 Volts and a Peak Current of 2 Amps! The iron U-Core design has a Dupont Rynite FR946 segmented bobbin for improved voltage distribution. This material has incredible dielectric capabilities at high temperatures. The cutting-edge winding material features improved insulation as well as being capable of enduring extreme voltages.

Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time as well as lengthy spark duration.

MSD 8261 HVC-2 Race Ignition Coil Features:

  • Coil Type: Drag Race / Long Duration Use
  • Maximum Voltage: 45,000 Volts
  • Inductance: .250 mH
  • Peak Current: 2 Amps
  • Primary Resistance: .016 OHMs
  • Secondary Resistance: 30 OHMs
  • Spark Duration: 150 uS
  • Turns Ratio: 70:1
  • Coil Color: Red
  • Coil Shape: Square
  • Coil Style: Remote Mount
  • Coil Wire Attachment: Male/HEI
  • Coil Internal Construction: Epoxy
  • Ballast Resistor Included: No
  • Coil Wire Included: No
  • Mounting Bracket Included: No
  • Quantity: Sold individually

Street cruisers as well as Top Fuel dragsters trust MSD's ignition systems as the industry leader for over 40 years. MSD continues to push the envelope with cutting-edge ignition technology as well as intake manifolds and EFI systems.

Sku: MSD8261
Vendor: MSD IGNITION
