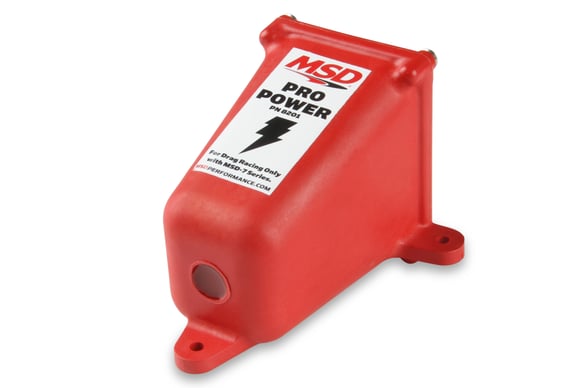

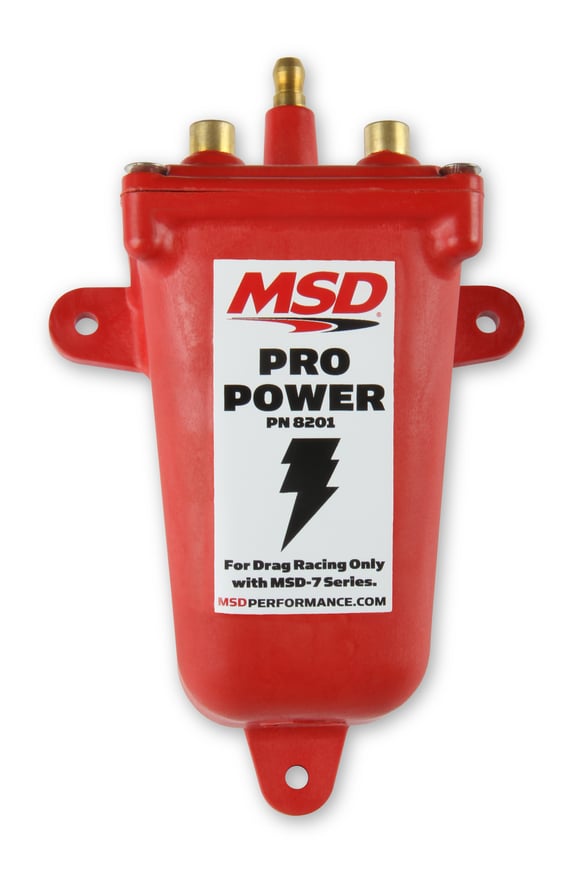

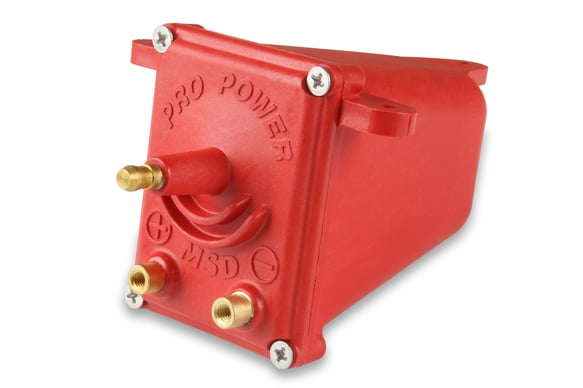

MSD 8201 Pro Power Race Ignition Coil

Product Description
$189.95
Maximum quantity available reached.

MSD designed this 8201 Pro Power Race Ignition Coil for use in racing applications with an MSD 7 or 8 series ignition only! It features MSD’s new U-Core winding design that produces more voltage and current than previous designs. It also has a durable and high dielectric polyester housing with a tall isolated tower as well as brass primary terminals.

This coil has a maximum voltage of 43,000 Volts and a Peak Current of 800mA! The iron U-Core design has a Dupont Rynite FR946 segmented bobbin for improved voltage distribution. This material has incredible dielectric capabilities at high temperatures. In addition, the primary and secondary windings are encased in Ciba polyurethane for vibration protection.

Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time as well as lengthy spark duration.

MSD 8201 Pro Power Race Ignition Coil Features:

  • Coil Type: Drag Race / Short Duration Use
  • Maximum Voltage: 43,000 Volts
  • Inductance: 1.00 mH
  • Peak Current: 800 mA
  • Primary Resistance: .030 OHMs
  • Secondary Resistance: 2.40K OHMs
  • Spark Duration: 180 uS
  • Turns Ratio: 100:1
  • Coil Color: Red
  • Coil Shape: Square
  • Coil Style: Remote Mount
  • Coil Wire Attachment: Male/HEI
  • Coil Internal Construction: Ciba Arathane
  • Ballast Resistor Included: No
  • Coil Wire Included: No
  • Mounting Bracket Included: No
  • Quantity: Sold individually

Street cruisers as well as Top Fuel dragsters trust MSD's ignition systems as the industry leader for over 40 years. MSD continues to push the envelope with cutting-edge ignition technology as well as intake manifolds and EFI systems.

Sku: MSD8201
Vendor: MSD IGNITION
