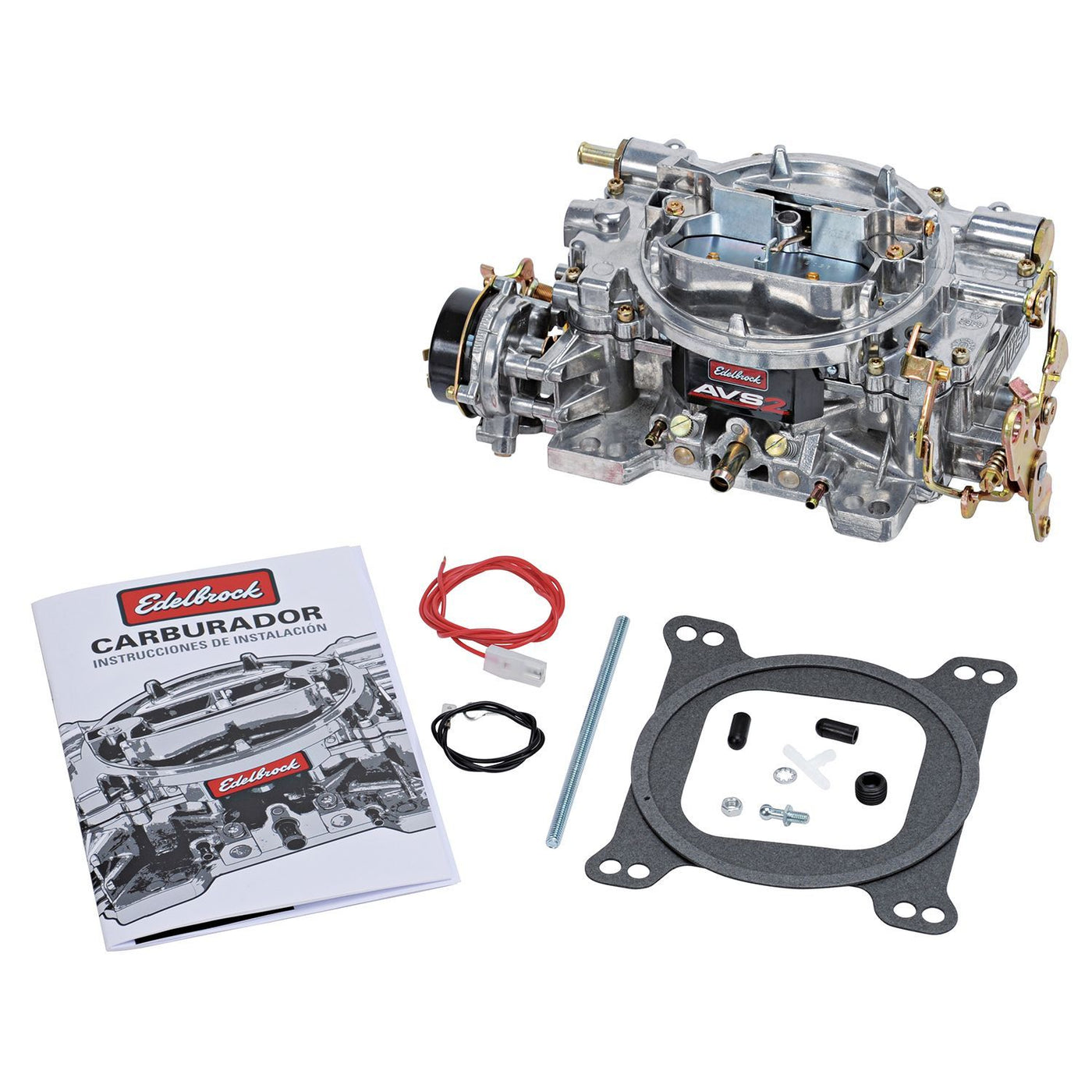

Edelbrock 1901 AVS2 Series Carburetor Electric Choke 500 CFM

Product Description
$479.95
Maximum quantity available reached.

Edelbrock 1901 AVS2 Series Carburetor Electric Choke 500 CFM

The Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1901 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

CFM: 500

Fuel: Gasoline

New or Remanufactured: New

Number of Barrels: 4

Carburetor Flange: Square bore

Choke: Electric

Secondary Type: Mechanical

Fuel Inlet: Dual

Primary Jet Size: 95

Secondary Jet Size: 95

Carburetor Finish: Satin

Ford Kickdown: No

Booster Type: Annular

Throttle Linkage Type: Universal

Carburetor Height (in): 3.250 in.

Quantity: Sold individually.

Sku: EDE1901
Vendor: Edelbrock
