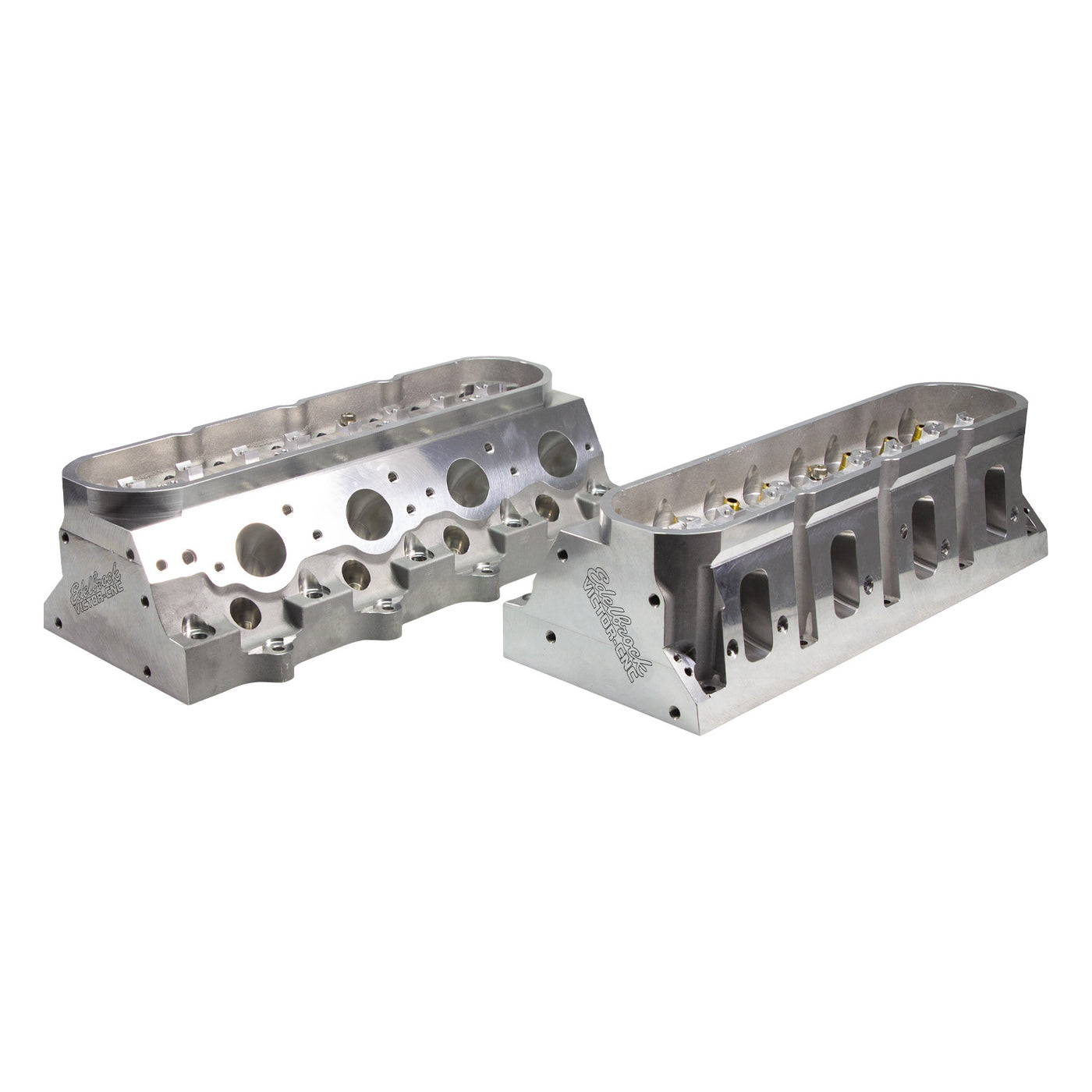

{"id":9438683070689,"title":"Edelbrock 77698 GM LS7 7.0L Victor CNC 12 Degree 307cc Cylinder Head, Bare","handle":"edelbrock-77698","description":"\u003cp style=\"mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eEdelbrock designed this 77698 Victor CNC cylinder head for GM LS7 7.0L engines. This bare head features a raised intake runner design that fits both stock and aftermarket LS7 intake manifolds and valvetrain setups. The raised runner and rolled valve angle increase overall flow capability, while an improved water jacket design improves thermal conductivity.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eThis 355-T6 aluminum alloy cylinder head features a 12° valve angle and 307 cc .220\" raised intake runners to provide a better line of sight into the 69 cc chambers and allow for an improved short turn. The exhaust ports are also raised .100” to allow the use of stock and aftermarket manifolds. The 100% CNC-ported runners and combustion chambers optimize volume, atomization, and velocity.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eThe 6-bolt design increases clamping capacity and greatly improves head gasket retention in high-horsepower and boosted applications in small and large cubic inch, hardcore street applications. It also makes it compatible with the advanced Edelbrock LS Race, GM LSX 6-bolt, and OEM 4-bolt blocks.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eBuilt to withstand race conditions, the .750”-thick deck surface and a reinforced solid rocker rail increase integrity, rigidity, and stability. The .400” raised rail works with aftermarket rockers. The copper seats received a 2.200” intake and 1.615” exhaust valve job.\u003c\/span\u003e\u003c\/p\u003e\n\u003ch3 style=\"mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal;\" class=\"MsoNormal\"\u003e\u003cspan style=\"color: #000000;\"\u003e\u003cb\u003e\u003cu\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif;\"\u003eEdelbrock 77698 Victor CNC GM LS7 7.0L Cylinder Head Features:\u003c\/span\u003e\u003c\/u\u003e\u003c\/b\u003e\u003cu\u003e\u003cspan style=\"font-size: 12.0pt; font-family: 'Times New Roman',serif; mso-fareast-font-family: 'Times New Roman';\"\u003e\u003c\/span\u003e\u003c\/u\u003e\u003c\/span\u003e\u003c\/h3\u003e\n\u003cul type=\"disc\"\u003e\n\u003cli\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eIntake Runner Volume: 307 cc\u003c\/span\u003e\u003c\/li\u003e\n\u003cli style=\"color: black; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal; mso-list: l0 level1 lfo1; tab-stops: list .5in;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eCombustion Chamber Volume: 69 cc\u003c\/span\u003e\u003c\/li\u003e\n\u003cli style=\"color: black; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal; mso-list: l0 level1 lfo1; tab-stops: list .5in;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eIntake Port: Raised .220 in.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eExhaust Port: Raised .100 in.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli style=\"color: black; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal; mso-list: l0 level1 lfo1; tab-stops: list .5in;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eValve Angle: 12 Degree\u003c\/span\u003e\u003c\/li\u003e\n\u003cli style=\"color: black; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal; mso-list: l0 level1 lfo1; tab-stops: list .5in;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eQuantity: Sold individually\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp style=\"mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eThe Edelbrock name has been a staple of the automotive performance industry since the 1940’s. Their product line includes virtually everything under the hood, from individual components to complete engines. This makes Edelbrock one of the most recognized and trusted brands in the racing and performance world!\u003c\/span\u003e\u003c\/p\u003e","published_at":"2026-04-10T11:43:38-05:00","created_at":"2026-04-10T11:43:37-05:00","vendor":"EDELBROCK","type":"Cylinder Heads","tags":[],"price":212550,"price_min":212550,"price_max":212550,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48199426998497,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ede77698","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Edelbrock 77698 GM LS7 7.0L Victor CNC 12 Degree 307cc Cylinder Head, Bare","public_title":null,"options":["Default Title"],"price":212550,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"085347776986","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.winnerscircle.com\/cdn\/shop\/files\/77698.jpg?v=1775842767"],"featured_image":"\/\/www.winnerscircle.com\/cdn\/shop\/files\/77698.jpg?v=1775842767","options":["Title"],"media":[{"alt":"Edelbrock 77698 GM LS7 7.0L Victor CNC Cylinder Head, Bare, CNC Ported, 307cc Intake Runner, 12 Degree, 69cc Chambers, Raised Intake and Exhaust ports","id":39770365198561,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/www.winnerscircle.com\/cdn\/shop\/files\/77698.jpg?v=1775842767"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/www.winnerscircle.com\/cdn\/shop\/files\/77698.jpg?v=1775842767","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp style=\"mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eEdelbrock designed this 77698 Victor CNC cylinder head for GM LS7 7.0L engines. This bare head features a raised intake runner design that fits both stock and aftermarket LS7 intake manifolds and valvetrain setups. The raised runner and rolled valve angle increase overall flow capability, while an improved water jacket design improves thermal conductivity.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eThis 355-T6 aluminum alloy cylinder head features a 12° valve angle and 307 cc .220\" raised intake runners to provide a better line of sight into the 69 cc chambers and allow for an improved short turn. The exhaust ports are also raised .100” to allow the use of stock and aftermarket manifolds. The 100% CNC-ported runners and combustion chambers optimize volume, atomization, and velocity.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eThe 6-bolt design increases clamping capacity and greatly improves head gasket retention in high-horsepower and boosted applications in small and large cubic inch, hardcore street applications. It also makes it compatible with the advanced Edelbrock LS Race, GM LSX 6-bolt, and OEM 4-bolt blocks.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp style=\"mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eBuilt to withstand race conditions, the .750”-thick deck surface and a reinforced solid rocker rail increase integrity, rigidity, and stability. The .400” raised rail works with aftermarket rockers. The copper seats received a 2.200” intake and 1.615” exhaust valve job.\u003c\/span\u003e\u003c\/p\u003e\n\u003ch3 style=\"mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal;\" class=\"MsoNormal\"\u003e\u003cspan style=\"color: #000000;\"\u003e\u003cb\u003e\u003cu\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif;\"\u003eEdelbrock 77698 Victor CNC GM LS7 7.0L Cylinder Head Features:\u003c\/span\u003e\u003c\/u\u003e\u003c\/b\u003e\u003cu\u003e\u003cspan style=\"font-size: 12.0pt; font-family: 'Times New Roman',serif; mso-fareast-font-family: 'Times New Roman';\"\u003e\u003c\/span\u003e\u003c\/u\u003e\u003c\/span\u003e\u003c\/h3\u003e\n\u003cul type=\"disc\"\u003e\n\u003cli\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eIntake Runner Volume: 307 cc\u003c\/span\u003e\u003c\/li\u003e\n\u003cli style=\"color: black; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal; mso-list: l0 level1 lfo1; tab-stops: list .5in;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eCombustion Chamber Volume: 69 cc\u003c\/span\u003e\u003c\/li\u003e\n\u003cli style=\"color: black; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal; mso-list: l0 level1 lfo1; tab-stops: list .5in;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eIntake Port: Raised .220 in.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eExhaust Port: Raised .100 in.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli style=\"color: black; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal; mso-list: l0 level1 lfo1; tab-stops: list .5in;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eValve Angle: 12 Degree\u003c\/span\u003e\u003c\/li\u003e\n\u003cli style=\"color: black; mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal; mso-list: l0 level1 lfo1; tab-stops: list .5in;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eQuantity: Sold individually\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp style=\"mso-margin-top-alt: auto; mso-margin-bottom-alt: auto; line-height: normal;\" class=\"MsoNormal\"\u003e\u003cspan style=\"font-size: 12pt; font-family: 'Times New Roman', serif; color: #000000;\"\u003eThe Edelbrock name has been a staple of the automotive performance industry since the 1940’s. Their product line includes virtually everything under the hood, from individual components to complete engines. This makes Edelbrock one of the most recognized and trusted brands in the racing and performance world!\u003c\/span\u003e\u003c\/p\u003e"}
