MSD 6430 Digital 6ALN Ignition Control - Nascar Approved

Product Description
$479.95
Maximum quantity available reached.

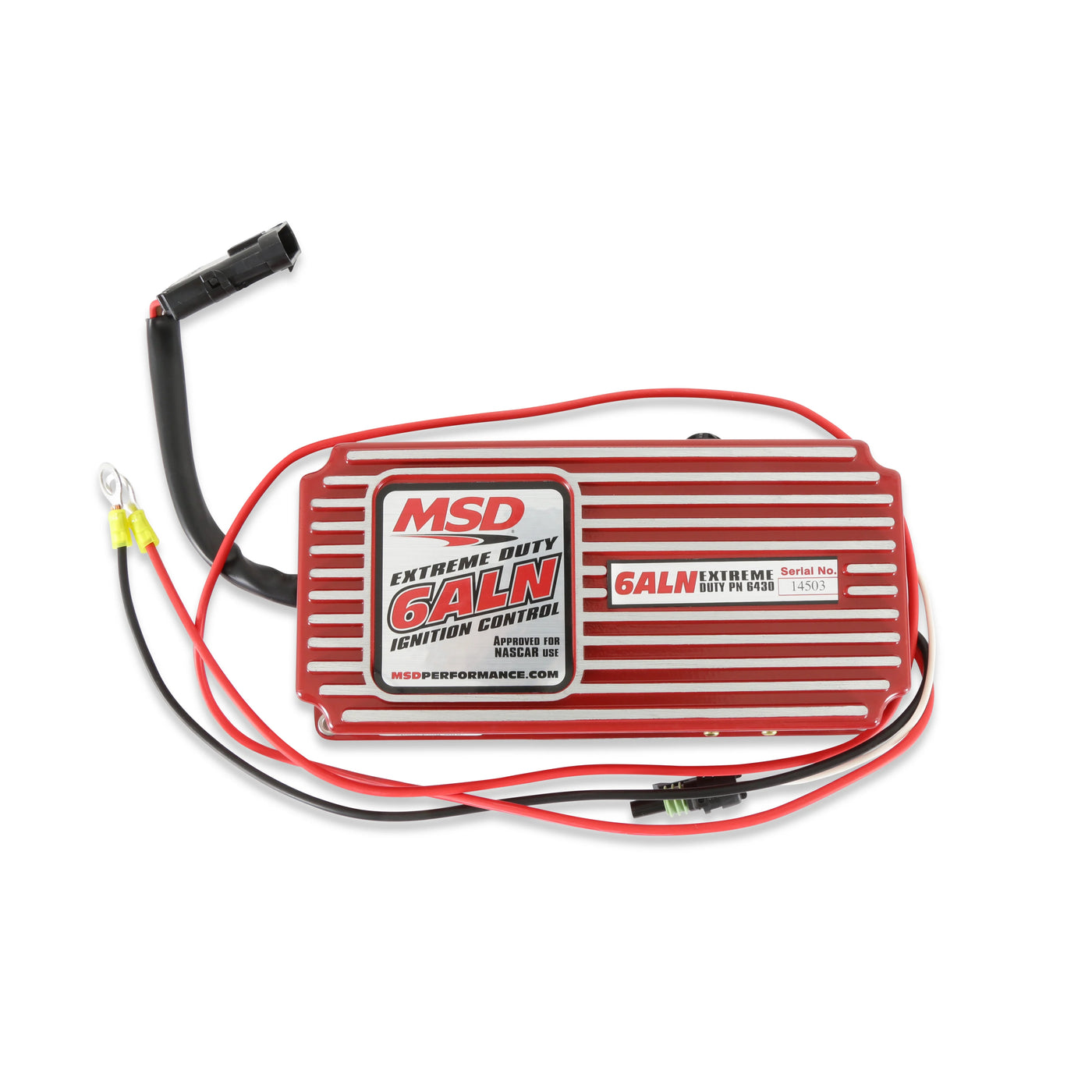

This MSD 6430 Digital 6ALN is the standard of the Ignition Control industry and designed with NASCAR in mind! This unit delivers over 470 volts to the coil with up to 110mJ of spark energy for every firing! The 6ALN is equipped with a mandatory 6-pin weathertight connector that meets NASCAR's ignition wiring rule of 20-6.1.

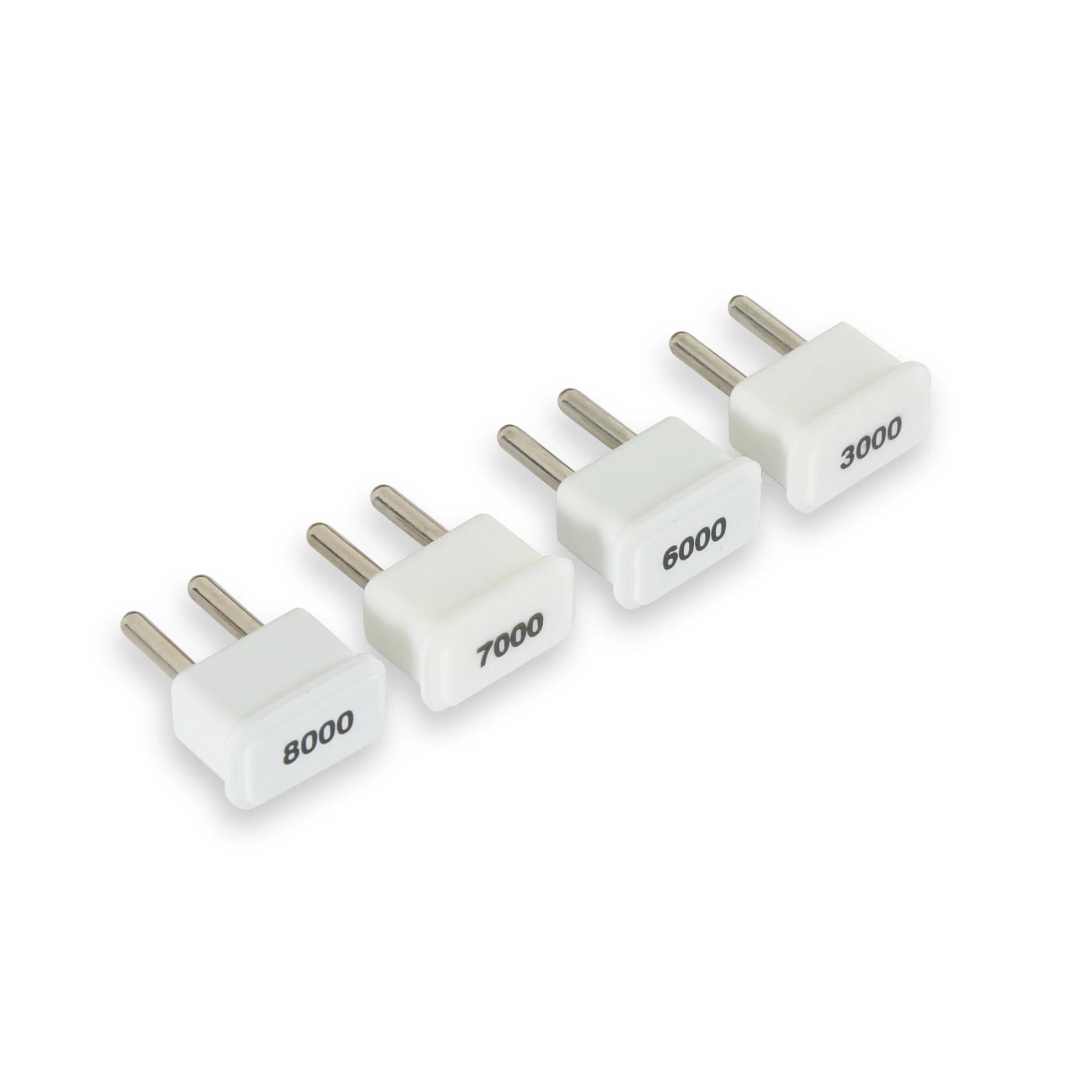

MSD built in a Soft Touch Rev Control that is adjustable with RPM modules. Inside the Digital 6ALN, a microprocessor monitors and controls every firing and rev limit while pulling less current. Increased output combined with MSD's proven multiple spark series is a win-win situation!

This ignition is compatible on 4-, 6-(even fire V6 only), as well as 8-cylinder engines with 12-18 volt electrical systems. It will accept trigger inputs from breaker points, amplifiers, as well as magnetic pickups.

MSD 6430 Digital 6ALN Ignition Control Features:

  • Designed for Circle Track Racing
  • Meets NASCAR's 20-6.1 Ignition Wiring Rule
  • Color: Red
  • High output with 470 volts and 110mJ of spark energy
  • Current Draw: 1 Amp per 1,000 RPM
  • Voltage Required: 12-18 Volts
  • Built-in Soft Touch Rev Control
  • Rev Limiter: Yes
  • Timing Retard: No
  • Data Acquisition: No
  • Coil Included: No
  • Length: 8.000 in.
  • Width: 4.000 in.
  • Height: 2.250 in.
  • Compatible with 4-, 6- as well as 8-cylinder engines

From street cruisers to Top Fuel dragsters, MSD's ignition systems have been the industry leader for over 40 years. MSD continues to push the envelope with cutting-edge ignition technology as well as intake manifolds and EFI systems.

Sku: MSD6430
Vendor: MSD IGNITION
